EN 10219-1 Welded Pipes

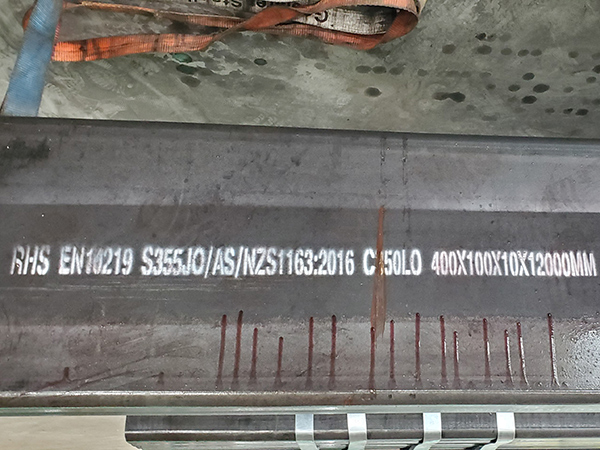

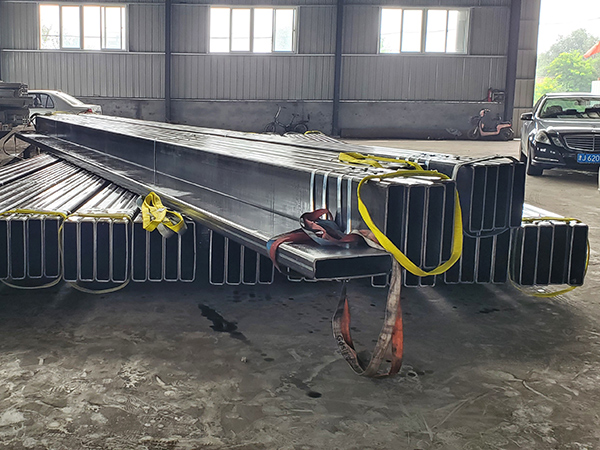

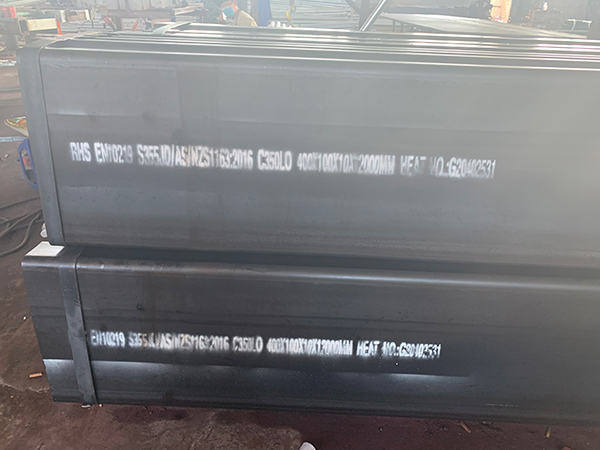

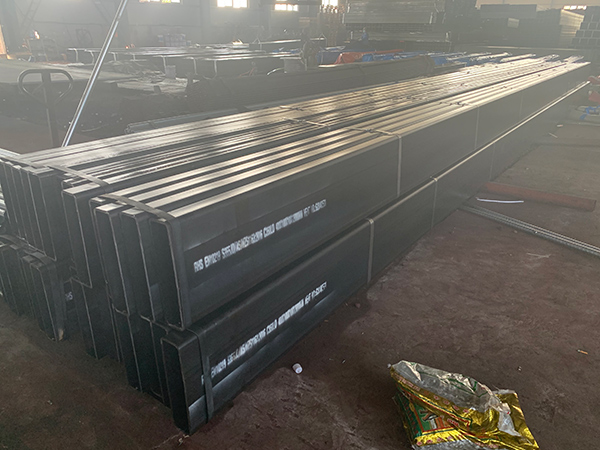

Featured Image

Short Description:

Type: square steel pipe, rectangular steel pipe
Specification: SHS: OD: 20X20 – 400X400mm. WT: 2-40mm. RHS: OD: 40X20 – 400X300mm. WT: 2-16mm
Standard: EN 10219-1
Grade: S235JRH, S275JOH, S275J2H, S355JOH, S355J2H, S355K2H
End: Plain-ended mechanically sheared, mill-cut finish without further machining.
Packing: Loose, Bundle, Wooden Pallet, Wooden box-a.


Product Detail

Size Chart

Application

Our Advantages

Product Tags

What is EN 10219-1 Steel Pipe?

En 10219 square And Rectangular Hollow Section is made up of strong carbon steel, corrosion resistant, and ductile. The pipes can come in different types, shapes, and dimensions. The material is made up of carbon, silicon, manganese, phosphorus, sulfur, and niobium in the content. The EN 10219 Pipe Standard mandates the pipe wall thicknesses to range from 1.8mm to 14.27mm. The minimum yield strength of the pipes is 345MPa and the minimum tensile strength is 510MPa. The material could be welded without the risk of welding crack or localized corrosion risk at the welded points. The applications include oil and gas, petroleum, petrochemical, and in power plant applications. EN 10219-1 steel pipe specified for Cold formed welded structural hollow sections of non-alloy and fine grain steels.

EN 10219-1 Steel Pipe Chemical Analysis

Steel grade

Type of de-oxidation a

% by mass, maximum

Steel name

Steel number

C

C

Si

Mn

P

S

Nb

S235JRH

1.0039

FF

0,17

—

1,40

0,040

0,040

0.009

S275J0H

1.0149

FF

0,20

—

1,50

0,035

0,035

0,009

S275J2H

1.0138

FF

0,20

—

1,50

0,030

0,030

—

S355J0H

1.0547

FF

0,22

0,55

1,60

0,035

0,035

0,009

S355J2H

1.0576

FF

0,22

0,55

1,60

0,030

0,030

—

S355K2H

1.0512

FF

0,22

0,55

1,60

0,030

0,030

—
a. The deoxidation method is designated as follows:FF: Fully killed steel containing nitrogen binding elements in amounts sufficient to bind available nitrogen (e.g. min. 0,020 % total Al or 0,015 % soluble Al).b. The maximum value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0,020 % with a minimum Al/N ratio of 2:1, or if sufficient other N-binding elements are present. The N-binding elements shall be recorded in the Inspection Document.

The tolerances on dimensions are established in accordance with EN 10219-1 steel pipe

Characteristics Tolerances
Outside dimensions of side (H,B100mm) 1% with a min of 0.5mm
H : Longest side
B : Shortest side		 (100mmH,B200mm) 0.8%
(200mmH,B) 0.6%
Wall thickness(T) (T5mm) 10%
(5mmT) 0.50mm
Concavity / Convexity MAX 0.8% with a min of 0.5mm
Squareness of sides 901
External corner radius (T6mm) 1.6TR2.4T
(6mmT10mm) 2.0TR3.0T
(10mmT) 2.4TR3.6T
Twist 2mm + 0.5mm/m in length
Straightness 0.15% in total length
Mass 6% in individual lengths
Length Approximate 0, +50mm
Exact L6,000mm 0, +5mm
6,000mmL10,000mm 0, +15mm
10,000mmL 0, +5mm+1mm/m
NOTE
1)The outside dimensions are measured across the flats at positions at least 50mm from the end of the HSS.



Steel Grade Steel No. Chemical Composition Limits (%)
C Max. Si Max. Mn Max. P Max. S Max. N Max.
S235JRH 1.0039 0.17 – 1.40 0.040 0.040 0.009
S275J0H 1.0149 0.20 – 1.50 0.035 0.035 0.009
S275J2H 1.0138 0.20 – 1.50 0.030 0.030 –
S355J0H 1.0547 0.22 0.55 1.60 0.035 0.035 0.009
S355J2H 1.0576 0.22 0.55 1.60 0.030 0.030 –
S355K2H 1.0512 0.22 0.55 1.60 0.030 0.030 –

EN 10219-1 Steel Pipe Mechanical Properties

Steel Grade Steel No. Mechanical Properties Impact Energy (KV J)
Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%) Test Temperature At a Test Temperature of ℃
-20 0 20
S235JRH 1.0039 235 360-510 26 – – 27
S275J0H 1.0149 275 410-560 23 – 27 –
S275J2H 1.0138 275 410-560 23 27 – –
S355J0H 1.0547 355 510-680 22 – 27 –
S355J2H 1.0576 355 510-680 22 27 – –
S355K2H 1.0512 355 510-680 22 40 – –
  • Previous:
  • Next:

    • Size Chart of EN 10219-1 Steel Pipe

    Size (mm) Wall thickness (mm)
    Square Rectangular 1.6 2 2.3 2.5 3 3.2 4 4.5 5 6 6.3 8 9 10 12 12.5 16 19 20 22
      60×30 √ √ √ √ √ √ √
    50×50   √ √ √ √ √ √ √ √ √ √
      60×40 √ √ √ √ √ √ √ √
      70×40 √ √ √ √ √ √ √ √
    60×60   √ √ √ √ √ √ √ √ √ √
      75×45 √ √ √ √ √ √ √ √ √ √
      75×50     √ √ √ √ √ √ √ √
      100×40 √ √ √ √ √ √
    75×75   √ √ √ √ √ √ √ √ √ √ √ √
      100×50 √ √ √ √ √ √ √ √ √ √
    80×80       √ √ √ √ √ √ √ √ √ √
      125×40 √ √ √ √ √ √ √ √
      125×50     √ √ √ √ √ √ √ √
    90×90       √ √ √ √ √ √ √ √ √
    100×100   √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
      125×75 √ √ √ √ √ √ √ √ √ √ √ √ √
      150×50     √ √ √ √ √ √ √ √
      150×75         √ √ √ √ √ √ √ √ √
      150×80         √ √ √ √ √ √
    120×120                     √ √ √ √ √ √
    125×125       √ √ √ √ √ √ √ √ √ √ √ √ √ √
      150×100     √ √ √ √ √ √ √ √ √ √ √ √ √
    150×150             √ √ √ √ √ √ √ √ √ √ √
      175×125               √ √ √ √ √ √ √ √
      200×100           √ √ √ √ √ √ √ √ √ √ √
    175×175                 √ √ √ √ √ √ √ √ √
      200×150               √ √ √ √ √ √ √ √ √
      250×100               √ √ √ √ √ √ √ √
    200×200                 √ √ √ √ √ √ √ √ √ √
      225×175               √ √ √
      250×150               √ √ √ √ √ √ √ √ √
      300×100               √ √ √ √ √ √
      250×200                   √ √ √ √ √ √ √
      300×150                   √ √ √ √ √ √ √
    250×250                     √ √ √ √ √ √ √ √ √
      300×200                   √ √ √ √ √ √ √ √
      350×150                   √ √ √ √ √ √ √
    300×300                     √ √ √ √ √ √ √ √ √
      350×250                   √ √ √ √ √ √ √ √
      400×200                   √ √ √ √ √ √ √
    350×350                           √ √ √ √ √ √ √ √
      400×300                         √ √ √ √ √
    400×400                           √ √ √ √ √ √ √ √
      500×300                             √ √ √ √
    450×450                           √ √ √ √ √ √ √ √
      600×300                             √ √ √ √
    500×500                           √ √ √ √ √ √ √ √
    550×550                               √ √ √ √ √ √

    Application of EN10219-1 Steel Pipe

    - Bridges
    - Railway Station Hall Roofs
    - Airport Waiting Hall Roofs
    - Trusses
    - Bus Shelters
    - Library Roofs

    We are a professional Carbon Steel Pipe manufacturer. We provide Carbon Steel Pipe of different sizes as well as steel pipes and pipe fittings of various specifications.

    Our Advantages:
    1.China-leading product service provider and exporter of steel pipe
    2.Competitive price and quality from our own factory
    3.One-stop Resource Integration
    4.Passed the ISO9001, CE, SGS certification every year
    5.Best service with 24-hour response
    6.Flexible payment methods
    7.Strong production capacity
    8.Fast delivery and standard export packaging
    9.OEM/ODM
